SPARTUS®
ProTIG 321PW AC/DC



MODERN AND EFFICIENT TIG AC / DC WITH PULSE

fota-slide2
fota-slide2
fota-slide2

1 / 8



zdalne sterowanie
The device has ability to work with remote control devices such as: wireless pilot, standard foot pedal.

WIRELESS REMOTE PILOT [EUR]:cena
STANDARD FOOT PEDAL [EUR]:cena

zdalne sterowanie

Technical parameters

Input ~3× 400V ± 10% 50 / 60 Hz
Welding Current TIG [A] 10 – 320
Duty cycle [%] 60
TIG PARAMETERS
Start Amps, End Ampstak
Gas pre flow [s] 0,1 – 2
Up slope [s] 0 – 10
Down slope [s] 0 – 10
Gas post flow [s] 0 – 10
TIG PULSE mode tak
Pulse Amps [A] 10 – 320
Base Amps [A] 10 – 320
Pulse Width [%] 5 – 95
Pulse frequency [Hz] 0,5 – 999
AC frequency [Hz] 50 – 250
AC Wave Forms Square, Sinusoidal, Triangular
AC balance [%] 10 – 99
2T/4T Controltak
Arc ignition LIFT / HF
Output remote control tak
MMA PARAMETERS
MMA welding mode [AC/DC] tak
Welding current MMA [A] 10 – 320
Hot Start range [%] 0 – 10
Arc Force range [%] 0 – 10
No-load voltage [V] 63
OTHER
Current consumpiton [A] AC: TIG 17.6 / MMA 23.1
DC: TIG 19 / MMA 25.4
Power factor(cosφ) 0,7
Efficiency η [%] 85
Insulation classH
Protection classIP21S
Weight [kg]74.5
Dimensions [mm]1150 × 600 × 1200
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

SPARTUS® ProTIG 321PW AC/DC is a inverter welderin a modern edition. It allows TIG AC / DC and MMA AC / DC welding with currentup to 320A.The device is powered from a 400V three-phase network.

Thanks to the solutions used, the ProTIG 321PW AC/DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition HF or Lift method. The device is equipped with a pulsewelding function, which makes the machine perfect for welding very thin sheets and aluminum.

ProTIG 321PW AC/DC has functions supporting the welding process in TIG method:

output AC waveforms: square, sinusoidal, triangular,
2T/4T Trigger Control,
AC balance, AC frequency, pulse frequency, pulse width and pulse amps adjustment,
up slope and down slope adjustment,
SPOT welding.

ProTIG 321PW AC/DC enables MMA AC and MMA DC welding.The process of joining metals in thismethod is additionally supported by functions such as:

- Arc Force
- Hot Start.

Additionally the devicehas 10 memory channels.The user can easily save and recall themost used settings.

The ProTIG 321PW AC/DC model is additionally equipped with an integrated liquid cooler, whichensures efficient cooling of the gun during welding with high currents. The whole is placed ona transport cart with space for a shielding gas cylinder.

Modern design, LCD function panel and the possibility of wireless control in combination withhigh-class components makes the ProTIG 321PW AC/DC stand out on the market.
The professional device of the SPARTUS® Pro line is perfect suited to the production sector andindustry.

Device SPARTUS® ProTIG 321PW AC/DC:

Device ProTIG 321PW AC/DC

Cooler

4 wheel drive set

3m work clamp

Gas hose

User's manual

Device price [EUR]:

cena

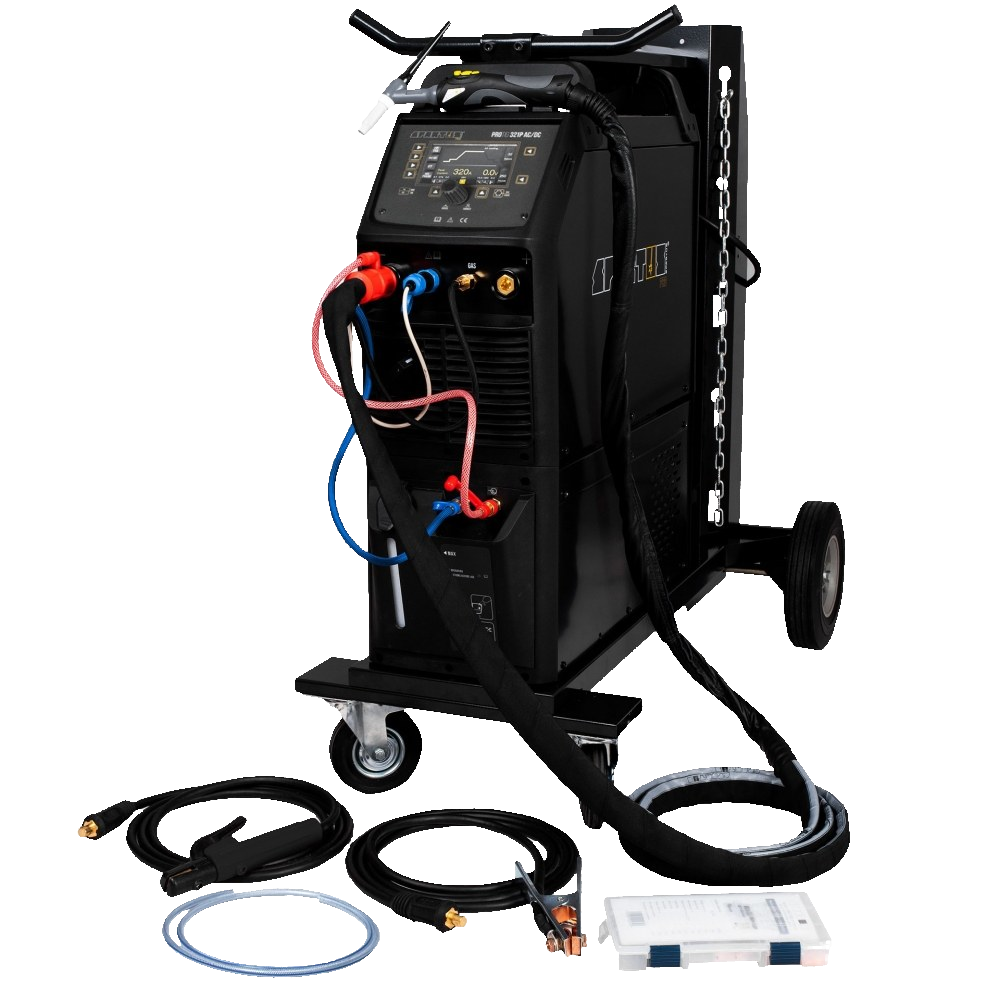

ProTIG 321PW AC/DC packages mini 20HD 4m / mini 20HD 8m

Device ProTIG 321PW AC/DC Device ProTIG 321PW AC/DC
Cooler Cooler
4 wheel drive set 4 wheel drive set
TIG torch mini SPP 20HD 4B X 4m TIG torch mini SPP 20HD 4B X 8m
TIG toolbox (consumable kit) TIG toolbox (consumable kit)
3m electrode holder 3m electrode holder
3m work clamp 5m work clamp
Gas hose Gas hose
User's manual User's manual
Torch mini SPP 20HD current-carrying capacity 300A DC / 220A AC

Package price [EUR]:


cena

Package price [EUR]:


cena

ProTIG 321PW AC/DC packages 18 4m / 18 8m

Device ProTIG 321PW AC/DC Device ProTIG 321PW AC/DC
Cooler Cooler
4 wheel drive set 4 wheel drive set
TIG torch SPP 18 4B X 4m TIG torch SPP 18 4B X 8m
TIG toolbox (consumable kit) TIG toolbox (consumable kit)
3m electrode holder 3m electrode holder
3m work clamp 5m work clamp
Gas hose Gas hose
User's manual User's manual
Torch SPP18 current-carrying capacity 350A DC / 250A AC

Package price [EUR]:


cena

Package price [EUR]:


cena
