English version


SPARTUS®
EasyMIG 375



SYNERGIC AND b IGBT MIG WITH LCD DISPLAY

1 / 6

Technical parameters

Input 3× 400V ± 10% 50 / 60 Hz
Welding current MIG [A] 50 – 350
Duty cycle [%] 60
MIG PARAMETERS
Output working voltage MIG [V] 9.9 – 35
Wire feeding speed [m/min] 0.8 – 16
Wire feeder built-in, 4-roll gear
Welding wire spool[kg]/[mm] ≤ 15 / ∅200 / ∅300
Wire diameter ∅ [mm] Steel 0.8 / 1.0 / 1.2
Aluminum 1.0 / 1.2
2T/4T Control tak
TIG PARAMETERS
TIG Lift tak
Welding current TIG [A] 10 – 350
MMA PARAMETERS
MMA welding mode tak
Welding current MMA [A] 10 – 300
Hot Start tak
Arc Force tak
OTHER
Wire test tak
Change polarity tak
Current consumption [A] 17
Weight [kg] 37
Dimensions [mm] 920 × 480 × 735
Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

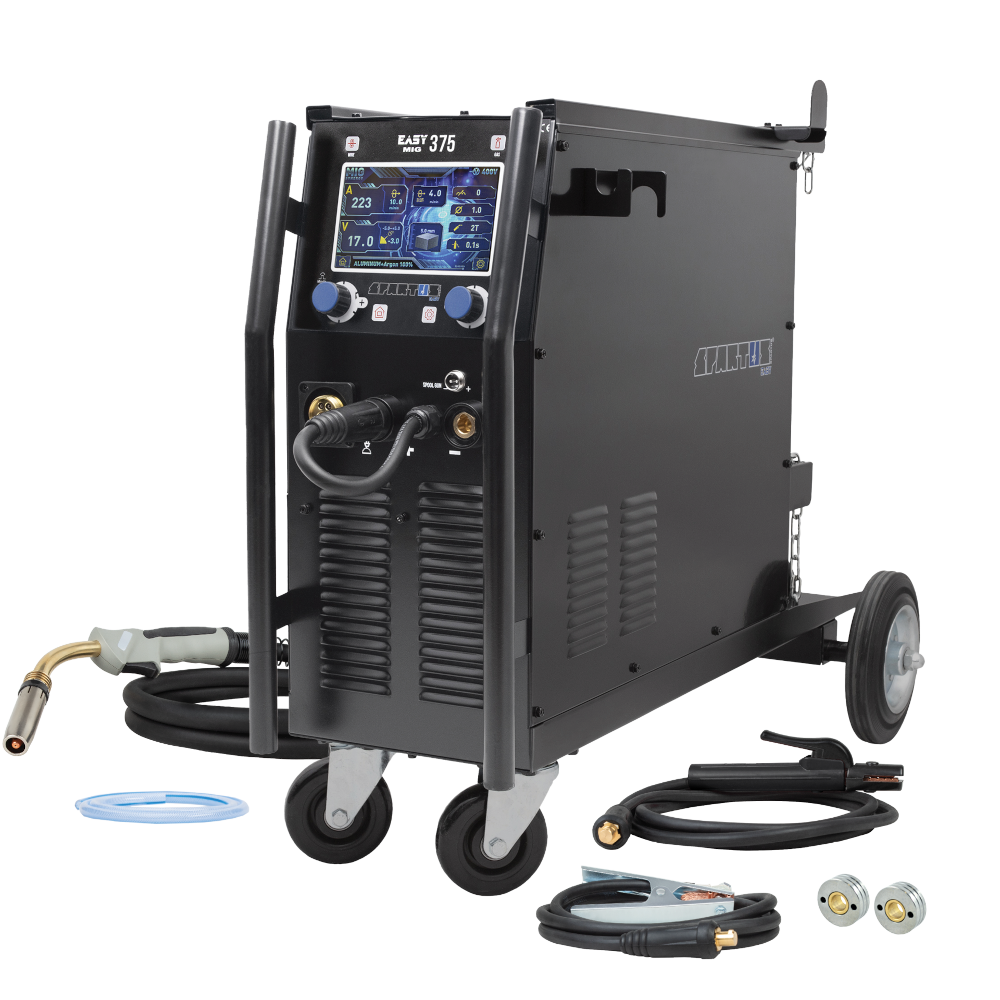

SPARTUS® EasyMIG 375 these high-end semi-automatic welding machine (compact type), made of inverter technology using IGBTs. It allows gas metal inert and active arc welding  MIG/MAG), metal arc welding (MMA) and TIG Lift with arc ignition. Thanks to the ability to change polarity, it allows welding with self-shielding wire without gas.
Max welding current is 350A for MIG/TIG, for MMA – 300A and is powered from three phase 400V source power.
The device is equipped with synergic programs for MIG / MAG welding with steel wires in the 0,8 - 1,2mm diameter range. Additionally, it is possible to manually correct selected parameters.
The use of modern technological solutions has allowed the device to be equipped with a number of functions that support welding processes:
2T / 4T – selection of one of two operating modes (MIG/MAG).
Inductance – regulation of welding inductance – it allows to control the width and depth of fusion and reduce the amount of welding splashes
Burn Back – precise adjustment of welding wire burning speed allows limit a risk of sticking the welding wire to the contact tip.
Slow Feed – so called gentle start-up of the wire feeder, recommended especially during welding with high amperage and high speed of wire feed.
Hot Start – for easier electrode ignition (MMA) Arc Force – for easier welding in forced positions (MMA)
VRD – lower no-load voltage (MMA).

A high-class 4-roll wire feeder, ensures stable wire feeding of steel, aluminum and stainless steel wire. Stable output parameters guarantee the appropriate quality of the weld.

SPARTUS® EasyMIG 375 package:

Device SPARTUS® EasyMIG 375

MIG gun SPARTUS® SPE 360 3m

Electrode holder

Work clamp

Gas hose

User's manual

Package price [EUR]:
