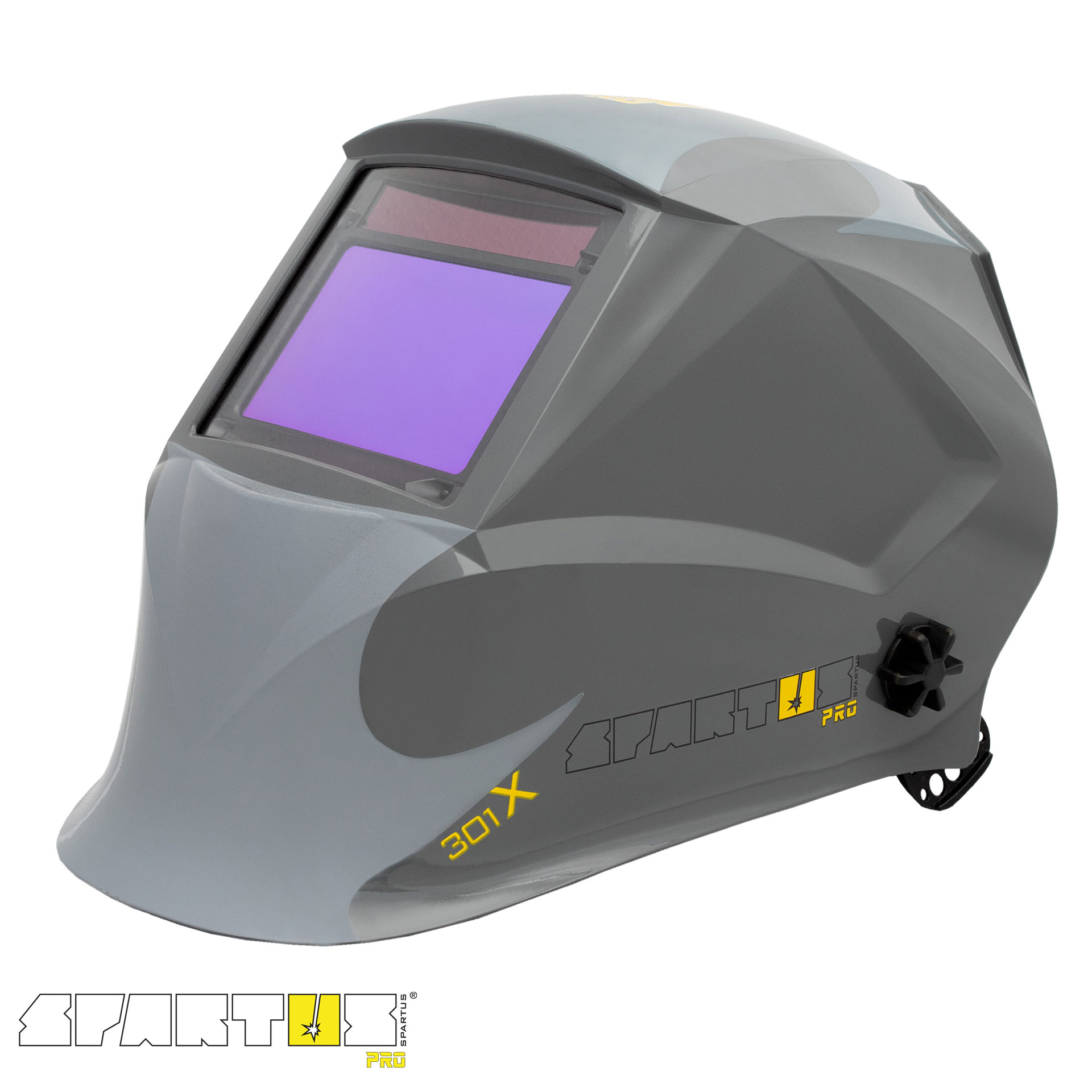

Auto darkening welding helmet SPARTUS Pro 301X

1 / 5

Technical parameters

Application Arc welding: MMA, TIG, MIG/MAG
Cartridge size 125 x 135 x 10 mm
Active field of view 100 x 65 mm
Shading (standby) DIN 4
Photo-sensors 4
Filter optical class 1/1/1/1
Variable welding shades (operating) DIN 4 - 8 or DIN 9 - 13
UV/IR protection degree to DIN 16
Light to dark switching time 1/30 000 s
Delay control light to dark switching time 0.3 - 0.9s
Powered Solar cells, battery
Grinding tak
Minimum TIG amps≥3A
Weight 490g
Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge
DESCRIPTIONCODEPRICE [EUR]
Helmet SPARTUS Pro 301X (white)080-10-301Wcena
Helmet SPARTUS Pro 301X (grey)080-10-301Gcena
External polycarbonate shield 125×106mm082-125-106cena
Internal polycarbonate shield 108×68mm082-108-068cena


Description:

Welding helmet SPARTUS Pro 301X. Designed and manufactured to protect the eyes and face of the welder from harmful radiation and splashes during TIG, MIG / MAG and MMA welding. In addition, it has a grinding function.
The automatic welding filter has the highest optical rating of 1/1/1/1 which, in combination with the large field of view of 100 x 65 mm, ensures perfect visibility. Built-in 4 modern photosensors guarantee the highest sensitivity of the filter. The minimum welding current for the TIG method is 3A. The filter is adjustable in the range of shading, brightening time, sensitivity and TEST function.
Welding helmet SPARTUS Pro 301X is a high class product for the most demanding welders. It is manufactured in accordance with world quality standards. It has excellent technical and performance characteristics.

Features of the 301X automatic filter:

Highest optical class 1/1/1/1

Smooth adjustment of shading of DIN 4 - 8 or DIN 9 - 13

Smooth adjustment of photosensors sensitivity

Smooth adjustment of filter’s brightening

TEST button

Active field of view 100x65mm
