SPARTUS®
EasyCUT 40



LITTLE DIMENSIONS SOURCE, GREAT POWER, EXCELLENT QUALITY OF CUTTING.

1 / 6



without HF

Technical parameters

Input~1 × 230V ± 10% 50 / 60 Hz
Cutting current [A]20 – 40
Max. cutting thickness [mm]25
Duty cycle [%]60
PLASMA PARAMETERS
Output working voltage [V]88 - 96
Recomended work pressure [bar]5
Air consumption [l/min]150
Post gas flow tak
Contactless pilot arc ignition (no HF) tak
OTHER
Current consumpiton [A] 32
Power factor (cosφ) 0,7
Efficiency η [%] 80
Insulation class H
Protection class IP23
Weight [kg] 8,5
Dimensions [mm] 460 × 146 × 290





Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

This is small size inverter plasma cutter. Designed for cutting metals and other electrically conductive materials. It is powered with single-phase 230V source power.

Through the use of modern technology, we were able to get a light and compact plasma cutter with maximum power of 40 amps, which a maximum cutting thickness equals 25 mm.

EasyCUT 40 has a simple-to-use function panel with adjustment knob which gives ability to adjust the cutting power between 20 - 40 amps.

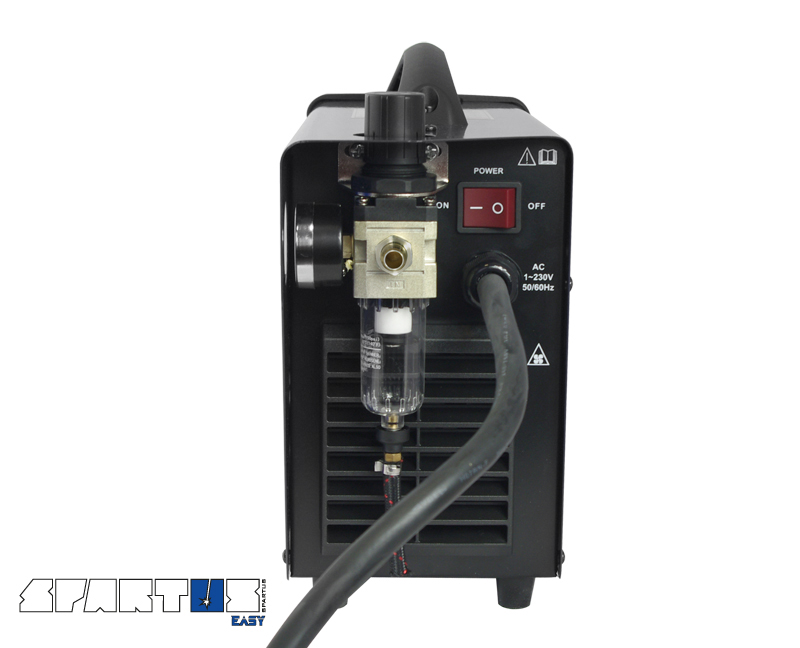

The cutter is equipped with a pressure reductor with air filter which is mounted at the rear of the casing, in a place specially designed for that purpose (protection against damage eg. during the move).

EasyCUT 40 device has a lot of modern solutions to support the process of plasma cutting and functioning of the device. Built-in system of contactless pilot arc ignition without HF - provides excellent quality of cutting edge and longer life of consumables.

Examples of use: workshop, portable repair, production.

Package equipment:

EasyCUT 40 device

Plasma torch SPARTUS® 45H 6m

PLASMA toolbox (consumable kit)

3m work clamp

Air filter with the pressure control

Air hose

User’s manual

Package price [EUR]:
cena

* used with retaining cap – 6 holes (60389)
