SPARTUS®
ProCUT 125CNC



MODERN PLASMA CUTTER - MAX. CUTTING THICKNESS 55MM

1 / 6



without HF

Technical parameters

Input~3 × 400V ± 10% 50 / 60 Hz
Cutting current [A]20 – 100
Max. cutting thickness [mm]55
Duty cycle [%]100
PLASMA PARAMETERS
Output working voltage [V]88 - 106
Recomended work pressure [bar]5,5
Air consumption [l/min]250
Post-gaz tak
Contactless pilot arc ignition (no HF) tak
2T / 4T tak
OTHER
Current consumpiton [A] 28
Power factor (cosφ) 0,76
Efficiency η [%] 85
Insulation class H
Protection class IP21S
Weight [kg] 32
Dimensions [mm] 770 × 270 × 490





Download data sheet Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge Click on photo to enlarge

Description:

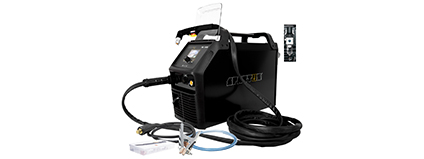

SPARTUS® ProCUT 125CNC is an inverter plasma cutter with integrated CNC control socket. Designed for cutting metals and other electrically conductive materials. It is powered with three-phase 400V source power.
Through the use of modern technology, we have obtained excellent source for professional plasma cutting. Maximum cutting current is 100A and the maximum thickness of the material being cut equals 55mm.
Built-in system of contactless pilot arc ignition without HF – provides excellent quality of cutting and longer life of consumables.
Easy to use panel with LCD display allows for smooth adjustment of the cutting current and setting the appropriate pressure. Additionally, the cutter is equipped with a switch with the 2T / 4T operation mode.
SPARTUS® ProCUT 125CNC will find its application in production sectors, industry and as a source to the CNC plasma tables.

SPARTUS® ProCUT 125CNC package: SP100H

Device SPARTUS® ProCUT 125CNC

Handy plasma torch SPARTUS® 100H 6m

With toolbox (free consumables kit)

Air filter with the pressure control

3m work clamp

Gas hose

User's manual

Package price [EUR]:

cena

SPARTUS® ProCUT 125CNC package: CNC SP100M

Device SPARTUS® ProCUT 125CNC

Machine plasma torch SPARTUS® 100M 6m

With toolbox (free consumables kit)

Air filter with the pressure control

3m work clamp

Gas hose

User's manual

Package price [EUR]:

cena

SPARTUS® ProCUT 125CNC package: SP125HY

Device SPARTUS® ProCUT 125CNC

Machine plasma torch SPARTUS® 125HY 7.5m

With toolbox (free consumables kit)

Air filter with the pressure control

3m work clamp

Gas hose

User's manual

Package price [EUR]:

cena

SPARTUS® ProCUT 125CNC package: CNC SP125MY

Device SPARTUS® ProCUT 125CNC

Machine plasma torch SPARTUS® 125MY 7.5m

With toolbox (free consumables kit)

Air filter with the pressure control

3m work clamp

Gas hose

User's manual

Package price [EUR]:

cena
